Data Visualization & Exploratory Analysis

Week 3: MUSA 5080

Dr. Elizabeth Delmelle

2025-09-22

Today’s Agenda

What We’ll Cover

Part 1: Why Visualization Matters

• Anscombe’s Quartet and the limits of summary statistics
• Visualization in policy context
• Connection to algorithmic bias and data ethics

Part 2: Grammar of Graphics

• ggplot2 fundamentals
• Aesthetic mappings and geoms
• Live demonstration

Part 3: Exploratory Data Analysis

• EDA workflow and principles
• Understanding distributions and relationships
• Critical focus: Data quality and uncertainty

Part 4: Data Joins & Integration

• Combining datasets with dplyr joins

Part 5: Hands-On Lab

• Guided practice with census data
• Create publication-ready visualizations
• Practice ethical data communication

Part 1: Why Visualization Matters

Opening Question

Think about Assignment 1:

You created tables showing income reliability patterns across counties. But what if you needed to present these findings to:

• The state legislature (2-minute briefing)
• Community advocacy groups
• Local news reporters

Discussion: How might visual presentation change the impact of your analysis?

Anscombe’s Quartet: The Famous Example

Four datasets with identical summary statistics:

• Same means (x̄ = 9, ȳ = 7.5)
• Same variances
• Same correlation (r = 0.816)
• Same regression line

But completely different patterns when visualized

The Policy Implications

Why this matters for your work:

• Summary statistics can hide critical patterns
• Outliers may represent important communities
• Relationships aren’t always linear
• Visual inspection reveals data quality issues

Example: A county with “average” income might have extreme inequality that algorithms would miss without visualization.

Connecting Week 2: Ethical Data Communication

From last week’s algorithmic bias discussion:

Research finding: Only 27% of planners warn users about unreliable ACS data - Most planners don’t report margins of error - Many lack training on statistical uncertainty - This violates AICP Code of Ethics

Your responsibility:

• Create honest, transparent visualizations
• Always assess and communicate data quality
• Consider who might be harmed by uncertain data

Bad Visualizations Have Real Consequences

Common problems in government data presentation:

• Misleading scales or axes
• Cherry-picked time periods

• Hidden or ignored uncertainty
• Missing context about data reliability

Real impact: The Jurjevich et al. study found that 72% of Portland census tracts had unreliable child poverty estimates, yet planners rarely communicated this uncertainty.

Result: Poor policy decisions based on misunderstood data

Part 2: Grammar of Graphics

The ggplot2 Philosophy

Grammar of Graphics principles:

Data → Aesthetics → Geometries → Visual

• Data: Your dataset (census data, survey responses, etc.)
• Aesthetics: What variables map to visual properties (x, y, color, size)
• Geometries: How to display the data (points, bars, lines)
• Additional layers: Scales, themes, facets, annotations

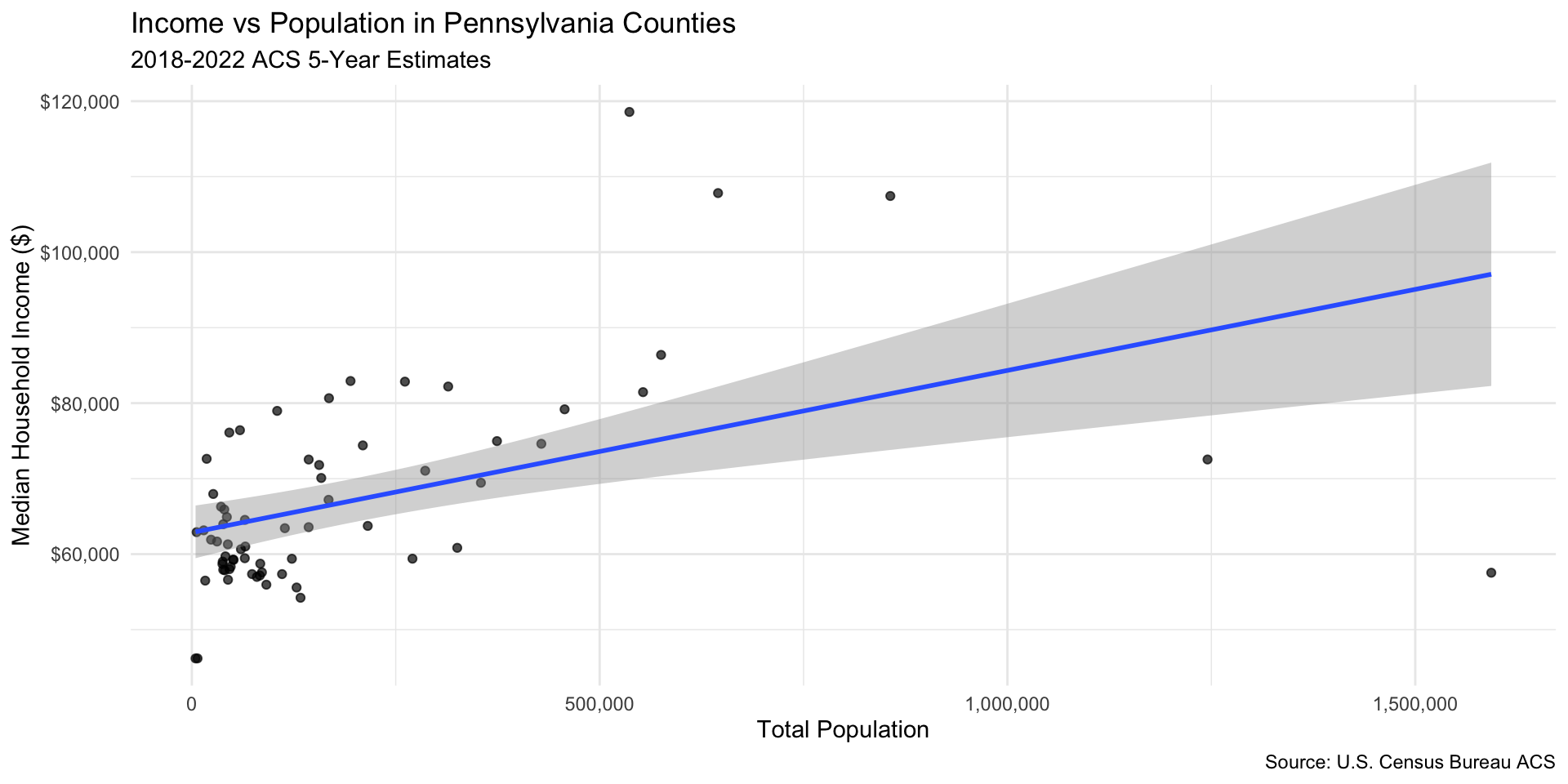

Basic ggplot2 Structure

Every ggplot has this pattern:

ggplot(data = your_data) + aes(x = variable1, y = variable2) + geom_something() + additional_layers()

You build plots by adding layers with +

Live Demo: Basic Scatter Plot

Aesthetic Mappings: The Key to ggplot2

Aesthetics map data to visual properties:

• x, y - position
• color - point/line color
• fill - area fill color

• size - point/line size
• shape - point shape
• alpha - transparency

Important: Aesthetics go inside aes(), constants go outside

Improving Plots with Labels and Themes

Part 3: Exploratory Data Analysis

The EDA Mindset

Exploratory Data Analysis is detective work:

1. What does the data look like? (distributions, missing values)
2. What patterns exist? (relationships, clusters, trends)

3. What’s unusual? (outliers, anomalies, data quality issues)
4. What questions does this raise? (hypotheses for further investigation)
5. How reliable is this data?

Goal: Understand your data before making decisions or building models

EDA Workflow with Data Quality Focus

Enhanced process for policy analysis:

1. Load and inspect - dimensions, variable types, missing data
2. Assess reliability - examine margins of error, calculate coefficients of variation
3. Visualize distributions - histograms, boxplots for each variable
4. Explore relationships - scatter plots, correlations
5. Identify patterns - grouping, clustering, geographical patterns
6. Question anomalies - investigate outliers and unusual patterns
7. Document limitations - prepare honest communication about data quality

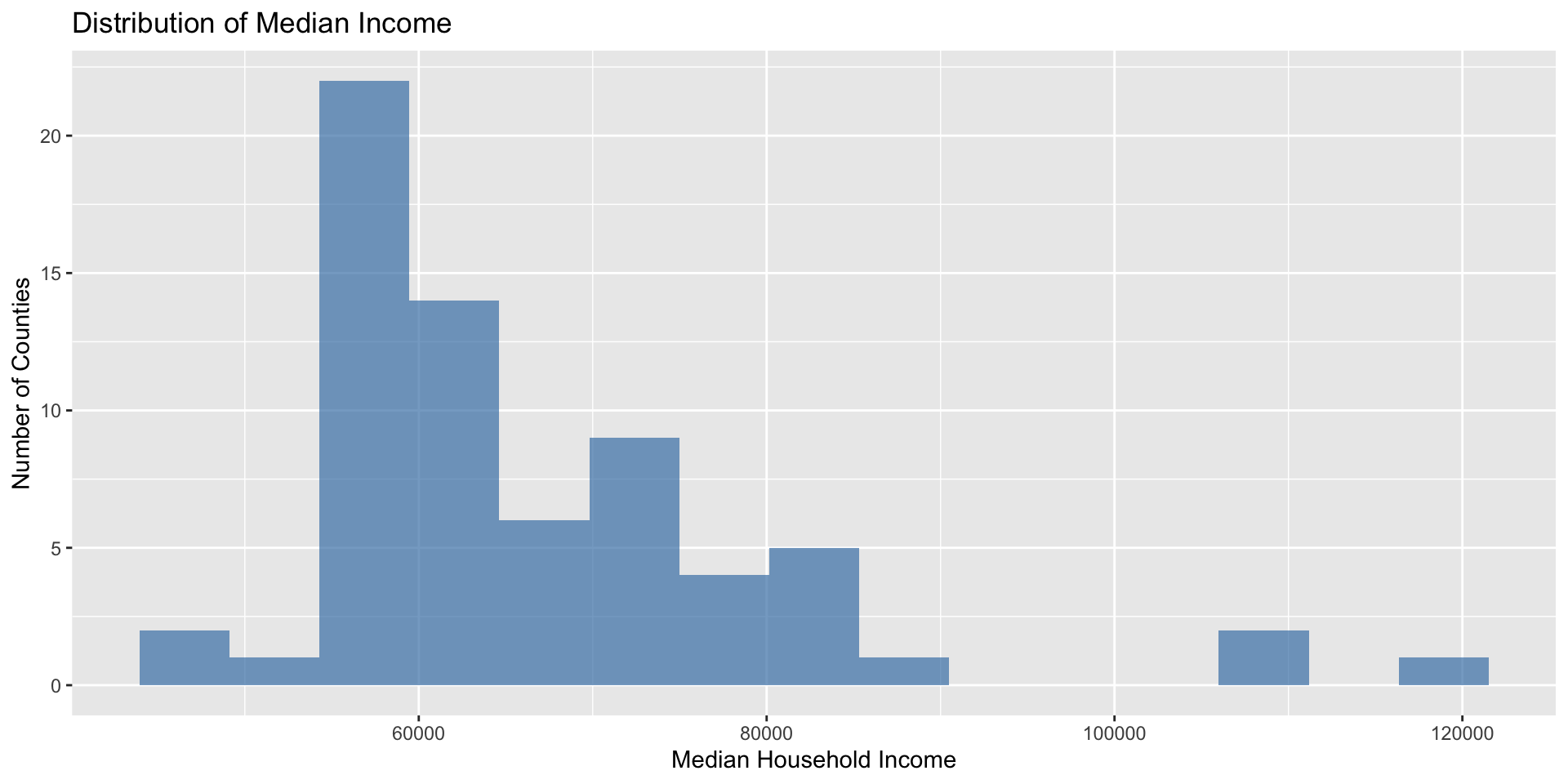

Understanding Distributions

Why distribution shape matters:

What to look for: Skewness, outliers, multiple peaks, gaps

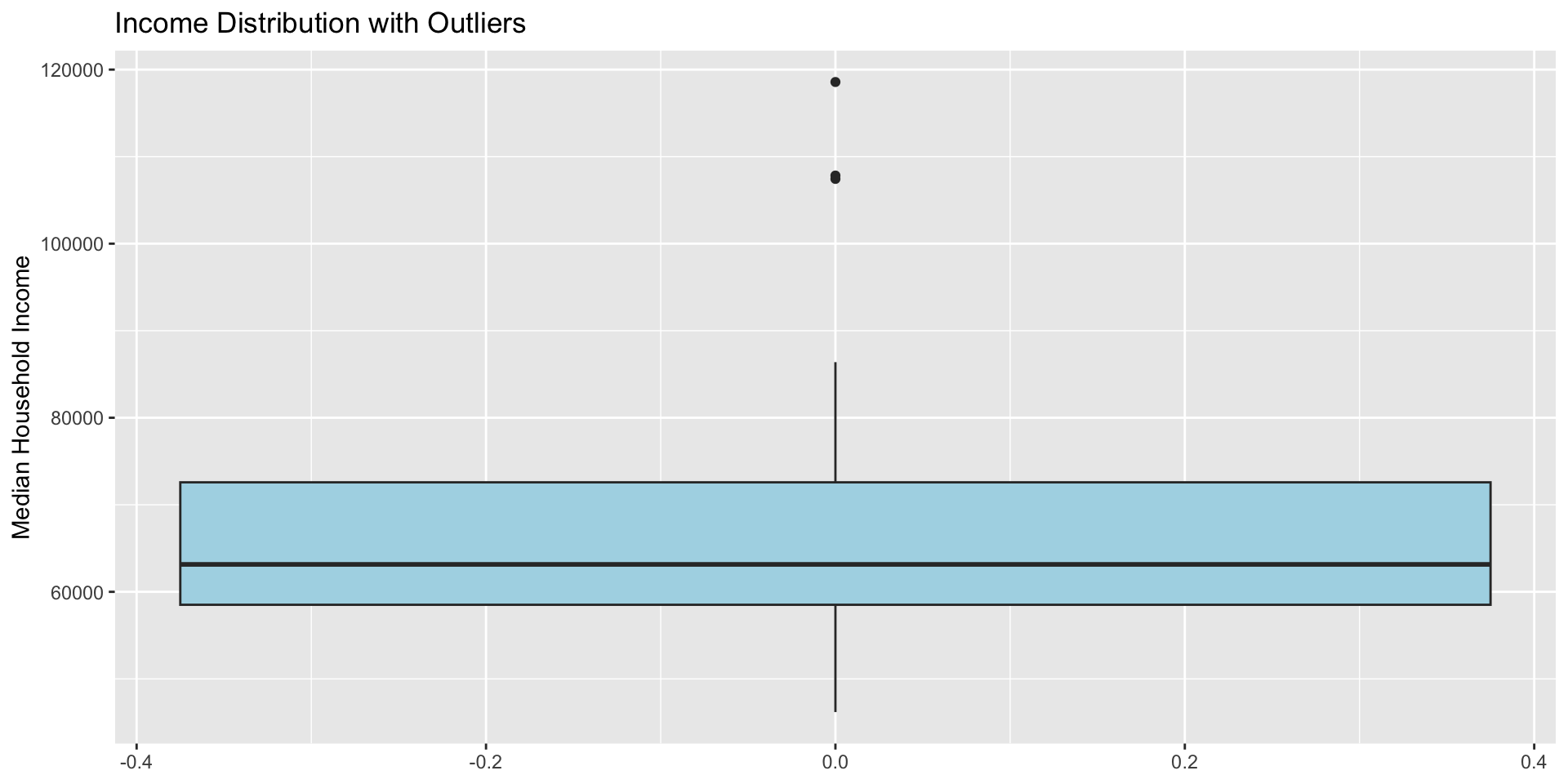

Boxplots!

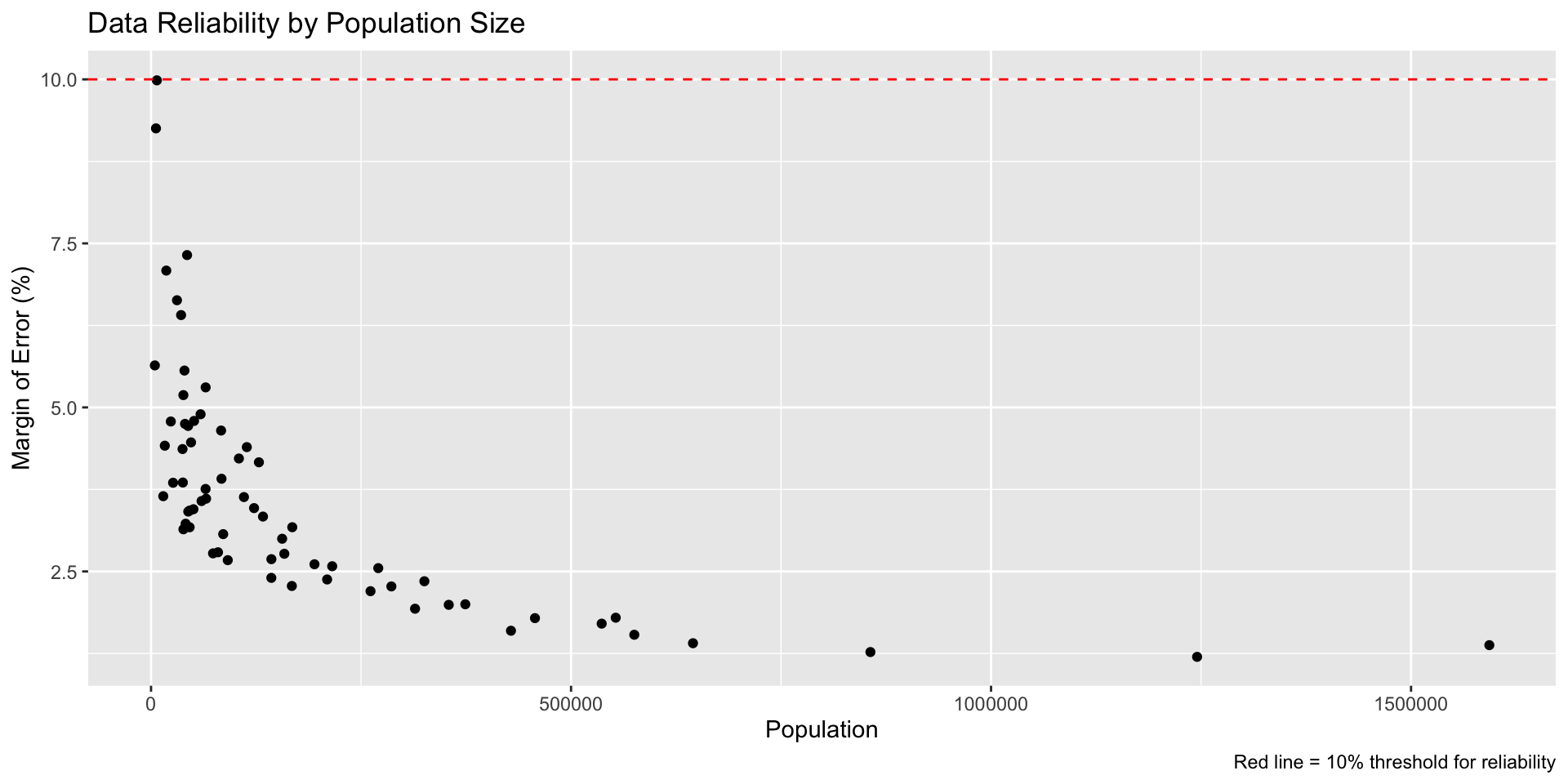

Critical: Data Quality Through Visualization

Research insight: Most planners don’t visualize or communicate uncertainty

Pattern: Smaller populations have higher uncertainty Ethical implication: These communities might be systematically undercounted

Research-Based Recommendations for Planners

Jurjevich et al. (2018): 5 Essential Guidelines for Using ACS Data

1. Report the corresponding MOEs of ACS estimates - Always include margin of error values
2. Include a footnote when not reporting MOEs - Explicitly acknowledge omission

3. Provide context for (un)reliability - Use coefficient of variation (CV):
   • CV < 12% = reliable (green coding)
   • CV 12-40% = somewhat reliable (yellow)
   • CV > 40% = unreliable (red coding)
4. Reduce statistical uncertainty - Collapse data detail, aggregate geographies, use multi-year estimates
5. Always conduct statistical significance tests when comparing ACS estimates over time

Key insight: These practices are not just technical best practices—they are ethical requirements under the AICP Code of Ethics

EDA for Policy Analysis

Key questions for census data:

• Geographic patterns: Are problems concentrated in certain areas?
• Population relationships: How does size affect data quality?
• Demographic patterns: Are certain communities systematically different?
• Temporal trends: How do patterns change over time?
• Data integrity: Where might survey bias affect results?
• Reliability assessment: Which estimates should we trust?

Part 4: Data Joins & Integration

Why Join Data?

To combining datasets of course:

• Census demographics + Economic indicators
• Survey responses + Geographic boundaries

• Current data + Historical trends
• Administrative records + Survey data

Types of Joins (tabular)

Four main types in dplyr:

• left_join() - Keep all rows from left dataset
• right_join() - Keep all rows from right dataset

• inner_join() - Keep only rows that match in both
• full_join() - Keep all rows from both datasets

Most common: left_join() to add columns to your main dataset

Live Demo: Joining Census Tables

# A tibble: 6 × 6
  GEOID NAME                    median_income income_moe college_pop college_moe
  <chr> <chr>                           <dbl>      <dbl>       <dbl>       <dbl>
1 42001 Adams County, Pennsylv…         78975       3334       10195         761
2 42003 Allegheny County, Penn…         72537        869      229538        3311
3 42005 Armstrong County, Penn…         61011       2202        6171         438
4 42007 Beaver County, Pennsyl…         67194       1531       22588        1012
5 42009 Bedford County, Pennsy…         58337       2606        3396         307
6 42011 Berks County, Pennsylv…         74617       1191       50120        1654

Checking Join Results and Data Quality

Always verify joins AND assess combined reliability:

Income data rows: 67

Education data rows: 67

Combined data rows: 67

# A tibble: 1 × 2
  missing_income missing_education
           <int>             <int>
1              0                 0

# A tibble: 6 × 3
  NAME                           income_cv college_cv
  <chr>                              <dbl>      <dbl>
1 Adams County, Pennsylvania          4.22       7.46
2 Allegheny County, Pennsylvania      1.20       1.44
3 Armstrong County, Pennsylvania      3.61       7.10
4 Beaver County, Pennsylvania         2.28       4.48
5 Bedford County, Pennsylvania        4.47       9.04
6 Berks County, Pennsylvania          1.60       3.30

Part 5: Hands-On Lab Introduction

Lab Structure for Today

You’ll work through six exercises:

1. Finding Census Variables - Learn to search for the data you need
2. Single Variable EDA - Explore distributions and identify outliers
3. Two Variable Relationships - Create meaningful scatter plots
4. Data Quality Visualization - Practice ethical uncertainty communication
5. Multiple Variables - Color, faceting, and complex relationships
6. Data Integration - Join datasets and create publication-ready visualizations

Skills You’ll Practice

ggplot2 fundamentals:

• Scatter plots, histograms, boxplots
• Aesthetic mappings and customization
• Professional themes and labels

EDA workflow:

• Distribution analysis
• Outlier detection

• Pattern identification

Ethical data practice:

• Visualizing and reporting margins of error
• Using coefficient of variation to assess reliability

Connection to Professional Ethics

By the end of today, you’ll be able to:

• Visually assess data quality issues
• Create compelling presentations of demographic patterns
• Communicate statistical uncertainty ethically and clearly
• Integrate multiple data sources

Getting Started

Questions Before We Begin?

Ready for hands-on practice?

Remember: Today’s skills build directly on Week 1-2 foundations:

• Same dplyr functions, now with visualization
• Same census data concepts, now with multiple tables

Let’s create some beautiful graphs
